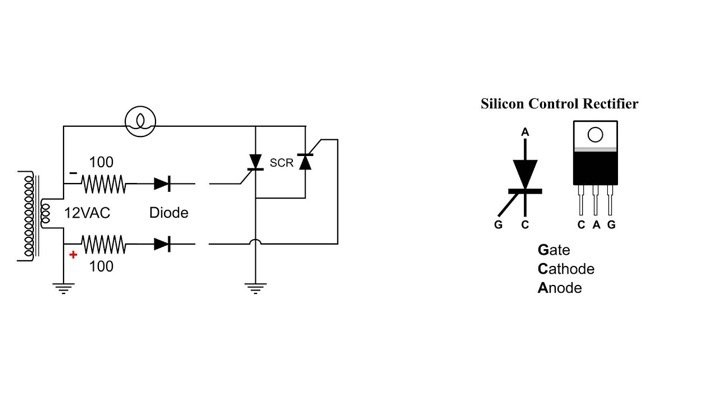

Silicon Controlled Rectifier (SCR) is a special semiconductor device that combines the unidirectional conductivity of a diode and the control function of a transistor.

Advantages of Silicon Controlled Rectifiers (SCR)



The main advantages of thyristors include:

What are the advantages of silicon controlled



  • High power processing capability: SCRs can handle larger currents and voltages, making them suitable for high-power applications such as power control and motor drives.
  • Simple control: conduction can be achieved through the gate trigger signal, the control circuit is simple, and it is easy to realize automatic control.
  • High switching speed: Compared with mechanical switches, SCR have faster switching speeds and are suitable for fast switching applications.

What are the advantages of silicon controlled

  • Low power consumption: SCR has low power consumption during operation and can achieve high-efficiency energy conversion.
  • High stability and reliability: SCR can work stably in harsh working environments and are not susceptible to external interference.
  • Fast response: The switching speed of SCR is very fast, usually between a few microseconds and tens of microseconds, which is suitable for applications that require fast response.
  • Small size and light weight: The size of the SCR is usually very small, only a few millimeters to more than ten millimeters square, and the weight is also very light, making it suitable for use in various miniaturized and lightweight electronic devices.
  • High safety: The SCR has a solid-state module structure and has no moving parts inside, so it is not prone to short circuit and other faults and has high safety performance.
  • Energy saving: SCR can achieve energy saving by reducing loss and effectively reduce energy waste.

What are the advantages of silicon controlled



Applications of Silicon Controlled Rectifiers (SCR)



Silicon Controlled Rectifier (SCR) is widely used in power systems. The following are some main application scenarios:

  • AC motor speed control system: SCR can be used to control the speed of AC motors, achieving precise speed control by changing the input voltage and frequency of the motor. This application is very common in industrial automation and power systems and can improve the efficiency and responsiveness of the system.
  • Reactive power compensation in the power system: SCR can be used for reactive power compensation in the power system. By adjusting the reactive power in the power grid, the power factor of the power grid is improved and energy loss is reduced.
  • DC power supply regulation: In the DC power supply system, the SCR can be used as a rectifier to convert AC power into DC power to provide stable DC power supply for electronic equipment.
  • Electric furnace control system: SCR can be used to control the temperature of the electric furnace. By adjusting the power output of the electric furnace, precise control of the temperature of the electric furnace is achieved, which is very important in the metallurgical and heat treatment industries.
  • Power conversion and inverter systems: SCRs can be used in power conversion and inverter systems to adjust the output voltage and frequency of alternating current to meet the working needs of different equipment.
  • Signal amplifier in power communication system: SCR can amplify and transmit signals by controlling its on and off, and plays an important role in power communication system.

What are the advantages of silicon controlled

Overview of Topdiode’s SCR Products

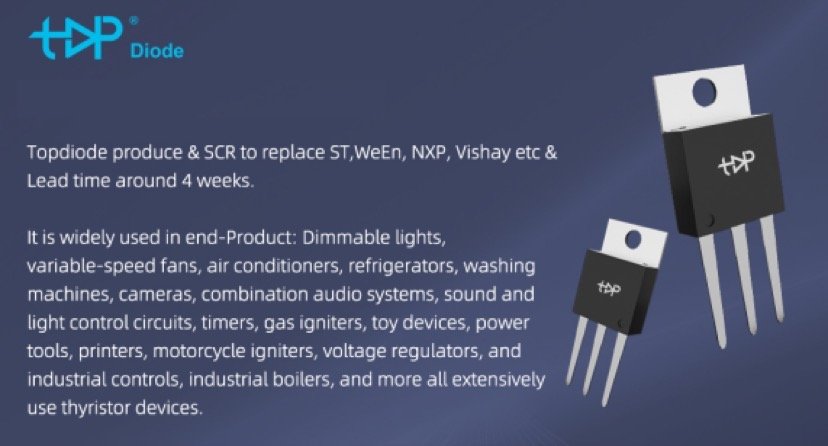

In general, SCRs are widely used in power control, household appliances, industrial control, cameras, combined audio, acousto-optic circuits, timing controllers, toy devices, radio remote controls, cameras and other fields. By accurately controlling the on-off state of the SCR, the circuit current and voltage can be accurately adjusted and various complex control functions can be realized. Topdiode produce SCR to replace ST, We En, NXP, Vishay etc.

Cross reference – SCR

Cross reference
Topdiode P/N# Package Cross to brands Cross to p/N Cross to package
100-8U T0-92 WeEn BT169D-L,116 T0-92
100-8u T0-92 ST TS110-8A2-AP T0-92
100-8W T0-223 NXP BT169W T0-223
CR03 T0-223 ST X0202MN T0-223
S1215-8F T0-220F WeEn BT151X-800R T0-220F
S7215-8B T0-220B ST TYNB12RG T0-220AB
S1215-6D T0-252 ST TN1215-600B-TR DPAK
S1215-8B T0-220B Littelfuse SB012RTP T0-220R
51215-8B T0-220B ST TYNB16RG T0-220AB
S1615-8B T0-220B Littelfuse SB016RTP T0-220R
57560-12N T0-247 Vishay VS-SOTPS12L-M3 T0-247AD
S5560-16N T0-247 WeEn TYN5OW-1600T T0-247
S10060-16NS T0-247 Vishay VS-70TPS16PBF T0-247



Topdiode is an ISO9001 manufacturer in China, They are one of the largest Diode/Transistor/

MOSFET /IGBT /SCR manufacturers in China, Topdiode’s market positioning is to replace similar first-line brands.

 If you want to explore more SCR, Please visit our website: https://www.topdiodes.com

Or send inquiry to karin@topdiode.com
