Infineon’s IPC50N04S5L5R5 product

As the international situation continues to evolve, China’s technology in the field of electronic components is constantly advancing. Coupled with the cost advantages of domestic components and the support of Chinese government policies, more and more imported products are being replaced by domestic alternatives. Topdiode Group an ISO9001 manufacturer in China, is the preferred domestic brand that can bring cost reduction and efficiency improvement to enterprises.

Today we will talk about Topdiode’s TP90N04Q, a powerful alternative to Infineon’s IPC50N04S5L5R5.

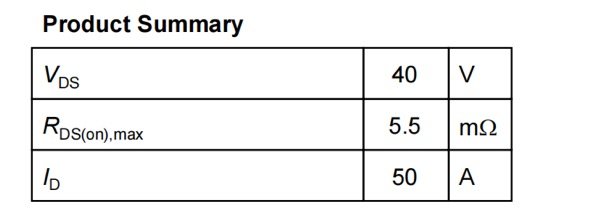

IPC50N04S5L5R5 is an N-channel power MOSFET produced by Infineon, drain-source voltage (Vdss): 40V, continuous drain current (Id): 50A, power (Pd): 42W.

Infineon's IPC50N04S5L5R5 product



MOSFET TP90N04Q PIN to PIN alternative to replace Infineon’s IPC50N04S5L5R5.

TP90N04Q N-Channel enhancement mosfet, excellent RDS(ON) and low gate charge, lead free product fast switching speed.

Infineon's IPC50N04S5L5R5 product

MOSFET PDFN3X3 N-Channel TP90N04Q-Topdiode DATA

Parameter Symbol Value Unit
Drain-Source Voltage VDS 40 V
Gate-Source Voltage VGS ±20 V
Continuous Drain Current (Ta=25℃) lD 80 A
Continuous Drain Current (Ta=100℃) ID 52 A
Pulsed Drain Current IDM 320 A
Power Dissipation PD 77 W
Thermal Resistance from Junction to Case RθJC 3.5 ℃/W
Junction Temperature TJ 175
Storage Temperature TSTG -55~+175

Infineon’s IPC50N04S5L5R5 Application areas

1)Motor Control: It is suitable for various motor control applications, including electric tools, industrial robots, drones, and other occasions that require precise motor control.

2)Power Management: It can be used for power conversion and power management, such as switch-mode power supplies (SMPS), telecommunications and server power supplies, solar inverters, etc.

3)Battery Management Systems: In the battery management systems of electric vehicles (EVs) and hybrid electric vehicles (HEVs), it is used for the protection and control of battery cells.

4)LED Lighting: In LED lighting systems, it is used to adjust brightness and improve power supply efficiency.

5)Industrial Control: Suitable for industrial automation and control systems, such as programmable logic controllers (PLCs) and servo drivers.

6)Telecommunications Equipment: In telecommunications infrastructure, it is used for signal conversion and power management.

Infineon's IPC50N04S5L5R5 product

Topdiode’s MOSFET is one of the leading MOSFET manufacturers in China. Its products include power MOSFET, high-voltage MOSFET, low-voltage MOSFET, etc. Its products are widely used in industry, computer, automobile, consumer electronics, telecommunications, military, aerospace and medical fields.It can directly replace some MOSFETs of brands such as Infineon, AOS, ST, Vishay etc. with PIN to PIN.

With its high quality, high performance MOSFET products, Topdiode has become one of the important players in the global electronic components market. Its wide product line and outstanding technical advantages have enabled it to occupy a dominant position in many fields such as industrial control, automotive electronics, consumer electronics and communication equipment. With the continuous advancement of technology and the increasing demand for applications, Topdiode’s MOSFET products will continue to play an important role in the global market.

If you want to explore more MOSFETs, please visit our website: https://www.topdiodes.com Or send inquiry to karin@topdiode.com
