What is a Super-Junction MOSFETs

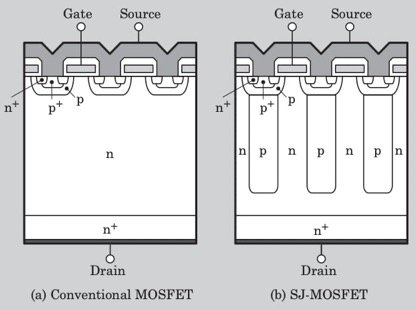

Super-Junction MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) is an advanced power MOSFET designed to handle high levels of power. Its a special type of power MOSFET, and its core part is the Super-Junction structure, which is formed by the alternating arrangement of P-type and N-type semiconductor materials. Its structure is more complex than that of the conventional MOSFET and involves a series of N and P layers arranged in a trench structure in the drift region.
Advantages of Super-junction MOSFETs
The Super-Junction MOSFET has high-speed switching, low conduction resistance, high breakdown voltage, and easy integration. These advantages make it suitable for high-efficiency and high-power density fast switching applications. It is widely used in power electronic conversion and high-speed digital logic circuits.
Super-junction MOSFETs offer better performance

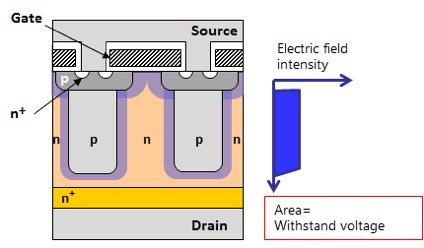

Due to the charge balance of Super-Junction MOSFET, the breakdown voltage is double under the same doping, and the area is double, and the breakdown voltage is approximately linear with the conduction resistance, which significantly reduces the conduction loss and switching loss. Because of the high energy efficiency and power density of Super-Junction MOSFET in fast switching applications, it is often used in high-end applications.
Topdiode’s Super-Junction MOSFETs
Topdiode produces of high-voltage Super-Junction MOSFETs, CoolMOS, has set new standards for energy efficiency, power density, and ease of use. It has excellent performance in terms of conduction, switching, and drive losses.
Topdiode produce PIN to PIN alternative to replace Infineon CoolMOS & Toshiba DTMOS with more than 600+ parts.
VDS(V): from 500V, 550V, 600V, 650V,700V, 800V, 900V,1000V, 1050V etc.
Package: SOT-223, TO-220, TO-247, TO-251, TO-252, TO-262, TO-263
Super Junction MOSFET 500&550V(Partial display)
| Part No. | Description | Package | VDS (V) | RDS(on) (Ω) @VGS=10V(max.) | ID (A) @TA=25℃ | VGS (V) |
| Super Junction MOSFET 500&550V | ||||||
| TPK06N50C4 | N-Channel SJ-MOS C4 | TO-220 | 500 | 0.95 | 5 | 30 |
| TPL06N50C4 | N-Channel SJ-MOS C4 | TO-220F | 500 | 0.95 | 5 | 30 |
| TPM06N50C4 | N-Channel SJ-MOS C4 | TO-263 | 500 | 0.95 | 5 | 30 |
| TPN06N50C4 | N-Channel SJ-MOS C4 | TO-262 | 500 | 0.95 | 5 | 30 |
| TPO06N50C4 | N-Channel SJ-MOS C4 | TO-252 | 500 | 0.95 | 5 | 30 |
| TPP06N50C4 | N-Channel SJ-MOS C4 | TO-251 | 500 | 0.95 | 5 | 30 |
| TPF06N50C4 | N-Channel SJ-MOS C4 | SOT-223-2L | 500 | 0.95 | 5 | 30 |
| TPK10N50C4 | N-Channel SJ-MOS C4 | TO-220 | 500 | 0.65 | 6 | 30 |
| TPL10N50C4 | N-Channel SJ-MOS C4 | TO-220F | 500 | 0.65 | 6 | 30 |
| TPO25N55C4 | N-Channel SJ-MOS C4 | TO-252 | 550 | 0.16 | 23 | 30 |
| TPJ25N55C4 | N-Channel SJ-MOS C4 | TO-247 | 550 | 0.16 | 23 | 30 |
| TPL28N55C4 | N-Channel SJ-MOS C4 | TO-220F | 550 | 0.125 | 28 | 30 |
| TPJ28N55C4 | N-Channel SJ-MOS C4 | TO-247 | 550 | 0.125 | 28 | 30 |
| TPL40N55C4 | N-Channel SJ-MOS C4 | TO-220F | 550 | 0.085 | 40 | 30 |
| TPJ40N55C4 | N-Channel SJ-MOS C4 | TO-247 | 550 | 0.085 | 40 | 30 |
Super Junction MOSFET 600V(Partial display)↓
| Part No. | Description | Package | VDS (V) | RDS(on) (Ω) @VGS=10V(max.) | ID (A) @TA=25℃ | VGS (V) |
| Super Junction MOSFET 600V | ||||||
| TPK07N60C4 | N-Channel SJ-MOS C4 | TO-220 | 600 | 1.14 | 5 | 30 |
| TPL07N60C4 | N-Channel SJ-MOS C4 | TO-220F | 600 | 1.14 | 5 | 30 |
| TPM07N60C4 | N-Channel SJ-MOS C4 | TO-263 | 600 | 1.14 | 5 | 30 |
| TPN07N60C4 | N-Channel SJ-MOS C4 | TO-262 | 600 | 1.14 | 5 | 30 |
| TPO07N60C4 | N-Channel SJ-MOS C4 | TO-252 | 600 | 1.14 | 5 | 30 |
| TPP07N60C4 | N-Channel SJ-MOS C4 | TO-251 | 600 | 1.14 | 5 | 30 |
| TPF07N60C4 | N-Channel SJ-MOS C4 | SOT-223-2L | 600 | 1.2 | 5 | 30 |
| TPK08N60C4 | N-Channel SJ-MOS C4 | TO-220 | 600 | 0.78 | 6 | 30 |
| TPL08N60C4 | N-Channel SJ-MOS C4 | TO-220F | 600 | 0.78 | 6 | 30 |
Super Junction MOSFET 650V(Partial display)↓
| Part No. | Description | Package | VDS (V) | RDS(on) (Ω) @VGS=10V(max.) | ID (A) @TA=25℃ | VGS (V) |
| Super Junction MOSFET 650V | ||||||
| TPK07N65C4 | N-Channel SJ-MOS C4 | TO-220 | 650 | 1.14 | 5 | 30 |
| TPL07N65C4 | N-Channel SJ-MOS C4 | TO-220F | 650 | 1.14 | 5 | 30 |
| TPM07N65C4 | N-Channel SJ-MOS C4 | TO-263 | 650 | 1.14 | 5 | 30 |
| TPN07N65C4 | N-Channel SJ-MOS C4 | TO-262 | 650 | 1.14 | 5 | 30 |
| TPO07N65C4 | N-Channel SJ-MOS C4 | TO-252 | 650 | 1.14 | 5 | 30 |
| TPP07N65C4 | N-Channel SJ-MOS C4 | TO-251 | 650 | 1.14 | 5 | 30 |
| TPF07N65C4 | N-Channel SJ-MOS C4 | SOT-223-2L | 650 | 1.2 | 5 | 30 |
| TPK08N65C4 | N-Channel SJ-MOS C4 | TO-220 | 650 | 0.78 | 6 | 30 |
| TPL08N65C4 | N-Channel SJ-MOS C4 | TO-220F | 650 | 0.78 | 6 | 30 |
Super Junction MOSFET 700V(Partial display)↓
| Part No. | Description | Package | VDS (V) | RDS(on) (Ω) @VGS=10V(max.) | ID (A) @TA=25℃ | VGS (V) |
| Wayon Super Junction MOSFET 700V | ||||||
| TPF05N70MM | N-Channel SJ-MOS EM | SOT-223-2L | 700 | 1.55 | 5.4 | 30 |
| TPP05N70MM | N-Channel SJ-MOS EM | TO-251 | 700 | 1.55 | 5.4 | 30 |
| TPO05N70MM | N-Channel SJ-MOS EM | TO-252 | 700 | 1.55 | 5.4 | 30 |
| TPL05N70MM | N-Channel SJ-MOS EM | TO-220F | 700 | 1.55 | 5.4 | 30 |
| TPK05N70MM | N-Channel SJ-MOS EM | TO-220 | 700 | 1.55 | 5.4 | 30 |
| TPN05N70MM | N-Channel SJ-MOS EM | TO-262 | 700 | 1.55 | 5.4 | 30 |
| TPK06N70EM | N-Channel SJ-MOS EM | TO-220 | 700 | 1.3 | 5 | 30 |
| TPL06N70EM | N-Channel SJ-MOS EM | TO-220F | 700 | 1.3 | 5 | 30 |
Super Junction MOSFET 800V(Partial display)↓
| Part No. | Description | Package | VDS (V) | RDS(on) (Ω) @VGS=10V(max.) | ID (A) @TA=25℃ | VGS (V) |
| Super Junction MOSFET 800V | ||||||
| TPK03N80M3 | N-Channel SJ-MOS M3 | TO-220 | 800 | 4 | 3 | 30 |
| TPL03N80M3 | N-Channel SJ-MOS M3 | TO-220F | 800 | 4 | 3 | 30 |
| TPM03N80M3 | N-Channel SJ-MOS M3 | TO-263 | 800 | 4 | 3 | 30 |
| TPN03N80M3 | N-Channel SJ-MOS M3 | TO-262 | 800 | 4 | 3 | 30 |
| TPO03N80M3 | N-Channel SJ-MOS M3 | TO-252 | 800 | 4 | 3 | 30 |
| TPP03N80M3 | N-Channel SJ-MOS M3 | TO-251 | 800 | 4 | 3 | 30 |
| TPK05N80M3 | N-Channel SJ-MOS M3 | TO-220 | 800 | 2.3 | 4 | 30 |
| TPL05N80M3 | N-Channel SJ-MOS M3 | TO-220F | 800 | 2.3 | 4 | 30 |
Super Junction MOSFET >900V(Partial display)↓
| Part No. | Description | Package | VDS (V) | RDS(on) (Ω) @VGS=10V(max.) | ID (A) @TA=25℃ | VGS (V) |
| Super Junction MOSFET ＞900V | ||||||
| TPK02N90C2 | N-Channel SJ-MOS C2 | TO-220 | 900 | 7 | 1.5 | 30 |
| TPL02N90C2 | N-Channel SJ-MOS C2 | TO-220F | 900 | 7 | 1.5 | 30 |
| TPM02N90C2 | N-Channel SJ-MOS C2 | TO-263 | 900 | 7 | 1.5 | 30 |
| TPN02N90C2 | N-Channel SJ-MOS C2 | TO-262 | 900 | 7 | 1.5 | 30 |
| TPO02N90C2 | N-Channel SJ-MOS C2 | TO-252 | 900 | 7 | 1.5 | 30 |
| TPK05N100C2 | N-Channel SJ-MOS C2 | TO-220 | 1000 | 3.5 | 3 | 30 |
| TPL05N100C2 | N-Channel SJ-MOS C2 | TO-220F | 1000 | 3.5 | 3 | 30 |
| TPM05N100C2 | N-Channel SJ-MOS C2 | TO-263 | 1000 | 3.5 | 3 | 30 |
| TPN05N100C2 | N-Channel SJ-MOS C2 | TO-262 | 1000 | 3.5 | 3 | 30 |
| TPO05N100C2 | N-Channel SJ-MOS C2 | TO-252 | 1000 | 3.5 | 3 | 30 |
| TPL05N105C2 | N-Channel SJ-MOS C2 | TO-220F | 1050 | 3.5 | 3 | 30 |
| TPM05N105C2 | N-Channel SJ-MOS C2 | TO-263 | 1050 | 3.5 | 3 | 30 |
| TPN05N105C2 | N-Channel SJ-MOS C2 | TO-262 | 1050 | 3.5 | 3 | 30 |
| TPO05N105C2 | N-Channel SJ-MOS C2 | TO-252 | 1050 | 3.5 | 3 | 30 |
| TPP05N105C2 | N-Channel SJ-MOS C2 | TO-251 | 1050 | 3.5 | 3 | 30 |
| TPJ05N105C2 | N-Channel SJ-MOS C2 | TO-247 | 1050 | 3.5 | 3 | 30 |
| TPP90R1K5S | N-Channel SJ-MOS S | TO-251 | 900 | 1.5 | 4.5 | 30 |
| TPK90R1K5S | N-Channel SJ-MOS S | TO-220 | 900 | 1.5 | 4.5 | 30 |
| TPM90R1K5S | N-Channel SJ-MOS S | TO-263 | 900 | 1.5 | 4.5 | 30 |
| TPN90R1K5S | N-Channel SJ-MOS S | TO-262 | 900 | 1.5 | 4.5 | 30 |
| TPO90R1K1S | N-Channel SJ-MOS S | TO-252 | 900 | 1.1 | 6 | 30 |
Super-Junction MOSFET is a promising technology in the field of power electronics, which greatly enhances the performance of power devices and opens up new possibilities for a wide range of applications. The end products is following:
Switching power supply
Electric and hybrid vehicles
Renewable energy systems
Consumer Electronics
Industrial Automation and Motor Contol
LED lighting
Communication device
Household appliances
Medical equipment
If you want to explore more Super-Junction MOSFETs, CoolMOSMOS, please visit our website: https://www.topdiodes.com Or send inquiry to karin@topdiode.com
