Topdiode’s diodes are used in electricity meters

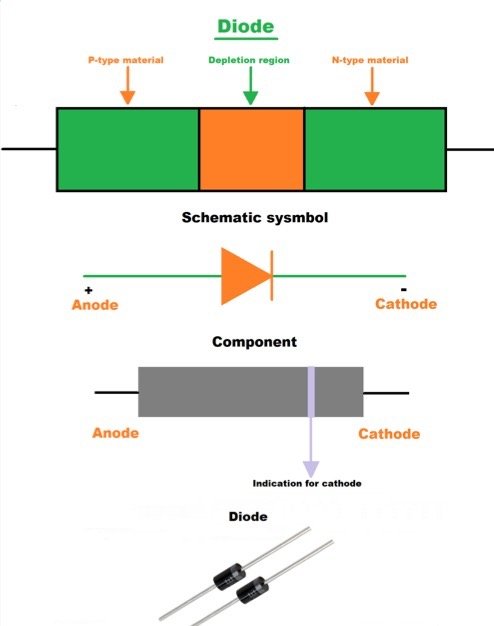

In electricity meters, diodes play a key role, the main performances are as follows:

Rectification: Diodes convert alternating current (AC) into pulsating direct current (DC), which is a basic function in power circuits. In an electric meter, a rectifier diode is used to convert the incoming alternating current into a form of direct current that the meter can handle.

Protection circuit: Diodes can be used to protect the meter from overvoltage damage. When the voltage exceeds the forward voltage of the diode, the diode will conduct, directing the excess voltage and current to ground, thereby protecting the meter from damage.

Signal modulation: The nonlinear characteristics of diodes allow them to be used for signal modulation, which is very important for the communication and data processing parts of electricity meters.

Limiting function: Diodes can be used to limit the amplitude of the signal to prevent the signal from being too large and damaging subsequent components in the meter.

Freewheeling function: In the inductive load of the electric meter, such as the inductor of the relay and switching power supply, the diode plays the role of freewheeling to prevent sudden changes in current from causing damage to the electric meter.

Detection function: In the communication module of the electric meter, the diode can be used as a detection diode to detect low-frequency signals from high-frequency signals, which is crucial for the data transmission and reception of the electric meter.

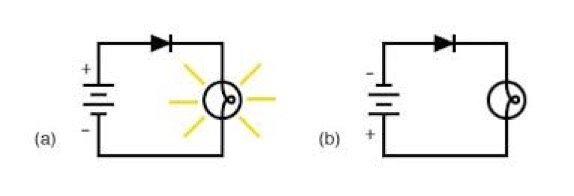

Anti-reverse connection protection: The diode can also prevent the positive and negative poles of the power supply from being connected reversely, protecting the meter from being affected by the reverse connection of the power supply.

Through these functions, the diode in the electric meter ensures the accurate measurement of electric energy and the safe and stable operation of the electric meter.

Topdiode diodes has been supplying to State Grid and China southern power Grid over 10 years,  can PIN to PIN replaces ON Semi, Vishay, Littelfuse etc.

The following are diode materials commonly used in electricity meter market.

In the specific application of electric meters, Topdiode’s diode are all selected from models suitable for industrial applications, with long life and strong ability to withstand transient over voltage, very powerful in electric energy meters and smart meters. It even has China’s urban power grid component qualifications. It is one of the top choices for alternative material solutions.
