MOSFET TO-252DPAK of Diodes

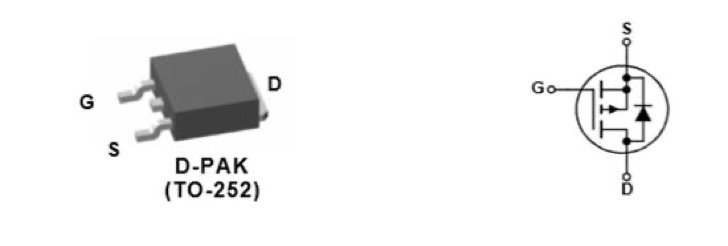

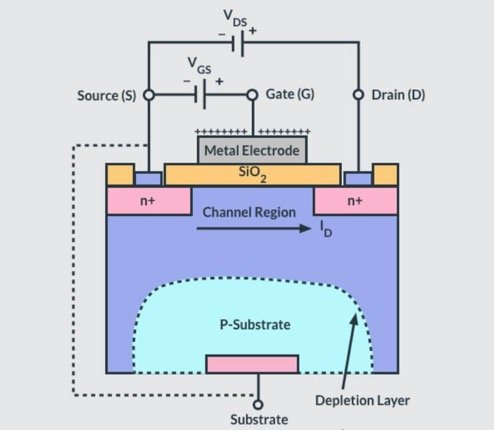

The TO-252DPAK package, also known as the DPAK package, is a surface mount power MOSFET package commonly used in medium power applications. The following are some key features and application information of the TO-252DPAK package:

Electrical characteristics

Suitable for medium power applications such as motor drives, power circuits, DC-DC converters, etc.

MOSFET TO-252DPAK of Diodes
Designed specifically for low on-resistance and high-speed switching MOSFETs, providing good electrical performance.



Heat dissipation performance

Due to the larger heat sink design, the TO-252DPAK package has good heat dissipation performance and is suitable for high power density applications.

Size and shape

TO-252DPAK package is rectangular and relatively small in size, suitable for surface mounting.

MOSFET TO-252DPAK of Diodes

Packaging material:

The leadframe is typically made of copper, with nickel plating on the bonding areas, leaded solder paste for die attach, aluminum wire for interconnects, and the molding compound is usually halogen-containing.

Process highlights:

Using thick aluminum wire welding technology, 100% matte tin plating, laser marking.

Environmentally friendly features:

Lead-free solder paste and halogen-free molding compounds are being developed to meet environmental requirements.

To sum up, the TO-252DPAK package has been widely used in medium-power applications due to its excellent electrical performance, good heat dissipation capability and suitability for surface mounting.

MOSFET TO-252DPAK of Diodes

Topdiode produce PIN to PIN alternative  for MOSFET TO-252/DPAK of Diodes, Infineon AOS, ST etc.



Cross reference of MOSFET TO-252/DPAK from Topdiode

Part No. Package Type Type VDS VGS Vth RDS(ON) (mΩ) max. at VGS= ID (A) Cross to Cross to Cross to
(V) (V) (V) 10V 4.5V Tc=25℃ Tc=100℃ Brands P/N package
TP25N06K TO-252 N 60 ±20 1.1-2.2 24/29 28.5/33 30 17 Diodes DMN6040SK3 TO-252
TP1310K TO-252 N 100 ±20 1.2-2.5 14/16 18.5/23 50 31.5 Diodes DMT10H025SK3-13 TO-252
TP90P03K TO-252 P -30 ±20 1.0-2.4 5.6/7.5 8.6/12 90 – Infineon IPD068P03L3 G PG-TO252-3
TP7N10K TO-252 N 100 ±20 1-2.2 105/130 150/185 7 4.6 Infineon IRLR120NTRPBF TO-252
TP25P06K TO-252 P -60 ±20 ‘1-2 49/60 58/72 25 12.7 AOS AOD407 TO-252
TP75N04K TO-252 N 40 ±20 1-2.5 5.8/8 9/12 60 39 AOS AOD4184A TO-252
TPA65R380KM TO-252 N 650 ±30 ‘2-4 350/380 – 11 8 ST STD13NM60N DPAK
TP15N10K TO-252 N 100 ±20 1-2.2 90/110 100/120 14.6 10 On semi FQD19N10LTM DPAK

Application:

  •   E-HORN –Auto
  •   DC-DC Converters
  • Power Management Functions
  • Backlighting”
  • Power Supply for coffee maker
  • 3W electric vehicle
  • motor controller”
  • High current load applications.
  • Two-way radio
  • Routers and Switches
  • Amplifier/Bluetooth speaker

If you want to explore more MOSFETS ,

please visit our website:https://www.topdiodes.com

Or send inquiry to karin@topdiode.com
