Overview of 1N4148W

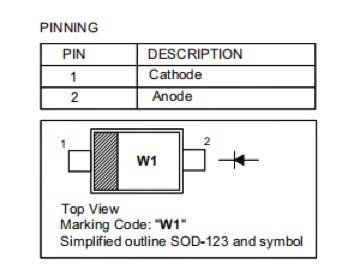

1N4148W is a high-speed switching diode, Due to its fast switching speed and small size, it is widely used in many electronic devices. 1N4148W is usually packaged in SOD-123, which is a surface mount package suitable for automated assembly.

Diode 1N4148W

Working Principle

The working principle of 1N4148W is based on the characteristics of PN junction. When forward biased, electrons flow from the N region to the P region, and holes flow from the P region to the N region, which reduces the thickness of the PN junction region and forms a conductive path; when reverse biased, electrons and holes are subject to the strong depletion electric field of the PN junction region, making it difficult to flow, forming a high resistance state, and the diode is in the cut-off state.

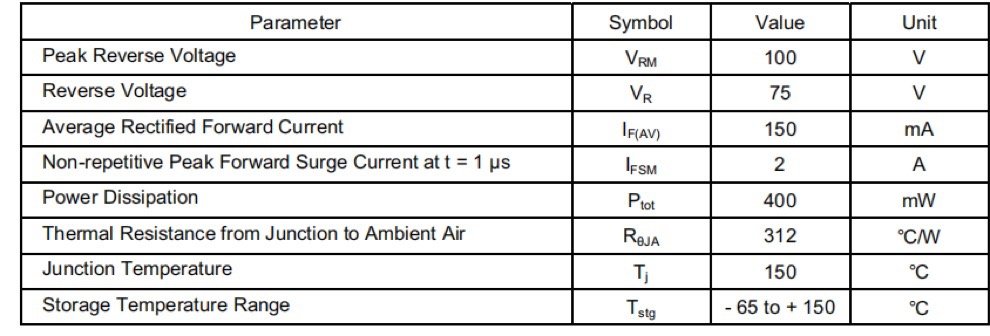

Topdiode’s 1N4148W Data — Absolute Maximum Ratings (T = 25°C)

Diode 1N4148W

Application Fields

Some of the most widely used electronic devices and fields of 1N4148W:

  • Digital logic circuits: Due to its high-speed switching characteristics, 1N4148W is suitable for digital logic circuits for signal processing and control.
  • Power supply and charging equipment: In power supplies, charging piles, generators, switching power supplies and other equipment, 1N4148W is mainly used for rectification, switching, voltage regulation and other functions to ensure the stable operation of electronic equipment.
  • Household appliances: In large and small household appliances, 1N4148W is also commonly used for power management and circuit protection.

Diode 1N4148W

  • Industrial control equipment: In industrial control circuits, 1N4148W is used for one-way conduction isolation of circuits with higher signal frequencies, as well as communications, computer motherboards, TV circuits and other fields.
  • Communication equipment: In communication equipment, 1N4148W can be used for signal amplification, transmission and exchange to ensure signal stability and reliability.
  • Automotive electronics: In the field of automotive electronics, 1N4148W can be used for power protection, signal transmission, and circuit control.
  • Temperature sensor circuit: 1N4148W can be used to build temperature sensor circuits, using its characteristics that change with temperature to measure temperature.
  • Signal filtering and rectification: 1N4148W is also used in signal filtering and rectification applications to block voltage spikes to protect electronic components from damage.
  • Freewheeling application: In occasions such as relays that require freewheeling, 1N4148W can be connected in parallel to absorb reverse electromotive force and protect the circuit.
  • Anti-reverse circuit: 1N4148W can be used to build anti-reverse circuits to protect circuits from damage by reverse current.

Summary and Market Positioning

In summary, the 1N4148W diode plays a variety of roles in power management, from basic rectification and protection to more advanced signal processing and temperature monitoring, which are all important applications in power management.
