Topdiode SCRs 100A 1200V S10060-12P

  • VD/VR:1600V
  • IT(AV):100A
  • IGT :60mA
  • High thermal cycling performance
  • High voltage capacity
  • Very high current surge capability

SCRs 100A 1200V S10060-12P Description - Topdiode

The S10060-12NS is suitable in industrial application where high immunity is required with a lower gate current.

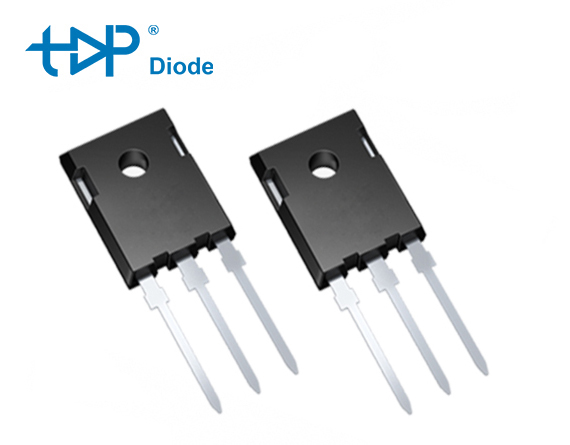

Available in through-hole high power package TO-247PLUS with anode in backside.

Topdiode S10060-12NS 100A SCRs is a great alternative offer for ST TN6050-12WL

Topdiode SCRs 100A 1200V S10060-12P DATA

Parameter Symbol     Value Unit
Storage junction  temperature range Tstg  -40 ~ 150
Operating junction temperature range Tj  -40~ 150
Repetitive peak off-state voltage (T =25℃) VDRM 1200/1600 V
Repetitive peak reverse voltage (T =25℃) VRRM 1200/1600 V
Non repetitive surge peak Off-state voltage VDSM VDRM +100 V
Non repetitive peak reverse voltage VRSM VRRM +100 V
RMS on-state current (T = 100℃) IT(RMS) 150 A
Average on-state current (180° conduction angle) IT(AV) 100 A
Non repetitive surge peak on-state current ITSM 1150 A
I2t value for fusing (tp= 10ms) I2t 6600 A2 S
Critical rate of rise of on-state curren
t(I =2×IGT, tr ≤ 100 ns)
di/dt 150 A/μS
Peak gate current IGM 8 A
Average gate power dissipation PG(AV) 1 W

Topdiode Hot Selling Products (6)

Circuit - speed water heater

Thyristors are pivotal in instant water heaters, significantly enhancing their performance.

Precise Temperature Control, in an instant water heater, thyristors regulate the power supplied to the heating element. By precisely adjusting the electrical current, they ensure the water reaches the desired temperature quickly and accurately. For example, if you set the heater to 40°C, the thyristor monitors the temperature sensor data. If the water is too cold, it increases power to the heating element; if it’s getting too hot, it reduces the power.

Energy Efficiency, thyristors optimize energy usage. They only draw the necessary power to heat the water, preventing over – heating and energy wastage. This not only saves on electricity bills but also makes the heater more environmentally friendly. Their ability to fine – tune power based on real – time temperature needs ensures efficient operation, making them an essential component for instant water heaters.

Recommended Models:
T16 Series
T25 Series

Topdiode SCRs and Triacs Applications

Home appliances
Speed water heater
UPS
What is a Thyristor?

A thyristor is a type of semiconductor device that acts as a switch, controlling the flow of electrical current in a circuit. Thyristors are typically used for switching and controlling high voltage or current in applications where the power must be turned on or off. They are made of four layers of semiconductor material (P-N-P-N) and typically have three terminals: anode, cathode, and gate.

Difference Between SCR & TRIAC?

Silicon Carbide Schottky Barrier Diodes are semiconductor devices that consist of a metal contact on a layer of n-type Silicon Carbide (SiC) material. The metal contact forms a Schottky barrier with the SiC material, which allows the flow of current in only one direction. SiC Schottky barrier diodes offer several advantages over conventional diodes, including lower forward voltage drop, shorter reverse recovery time, higher breakdown voltage, and higher temperature operation

What is the Working Principle of SiC Schottky Barrier Diodes?

SCR (Silicon Controlled Rectifier):

    1. Structure: An SCR is a type of thyristor that has a single direction of current flow. It has four layers (P-N-P-N) and three terminals: anode, cathode, and gate.
    2. Control: It is controlled by a gate signal. Once triggered, it remains in the “on” state (conducting) until the current flowing through it drops below a certain threshold (called the “holding current”).

TRIAC (Triode for Alternating Current):

    1. Structure: A TRIAC is similar to an SCR but can conduct current in both directions, making it suitable for AC applications. It has a similar structure but with an additional set of layers.
    2. Control: Like an SCR, a TRIAC is controlled by a gate signal, but it can conduct during both halves of an AC cycle, allowing bidirectional control.
Applications of Thyristors?

Thyristors are used in various applications, particularly where high-power control is needed:

  1. AC Power Control: Used in dimmers, motor speed controls, and light regulation.
  2. Rectifiers: SCRs are commonly used in phase-controlled rectifiers for converting AC to DC.
  3. Overvoltage Protection: Thyristors can be used in surge protection devices like gas discharge tubes and TVS diodes.
  4. Switching in Power Supplies: Thyristors are used in power supplies and inverters for controlling large currents and voltages.
  5. Industrial Motor Control: Used in adjustable-speed drives for controlling motor speed.
  6. Pulse Circuits: Used in pulse circuits for generating timing signals and pulse-width modulation (PWM).
What are Benefits of Thyristors?
  1. Topdiode produces TRIAC and SCR to replace tier 1 brands like ST, WeEn, Onsemi, Vishay etc.
  2. Cost down 30-60%
  3. Lead time around 3 weeks
  4. 100% guarantee quality
