What is a driver chip?

A driver chip is an integrated circuit chip used to control and drive the operation of other electronic devices. It is usually used to activate, control and manage various types of devices, such as motors, LED lights, display screens, etc. The driver chip can provide the required voltage, current and signal to ensure that the external device can operate normally.

 What is a driver chip?

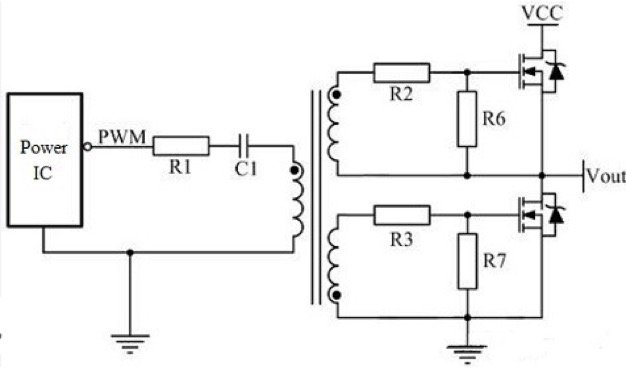

The role of driver chip

A driver chip

Control signal conversion and amplification

The driver chip can receive control signals from the main controller or other input sources and convert them into signals suitable for the controlled device. It can amplify, buffer and filter the input signals to ensure that the device can work properly.

Power supply and current drive

The driver chip can provide the required voltage and current to meet the power needs of the controlled device. It can stabilize the output voltage and current through the internal power management circuit, and adjust and protect as needed.

Protection and safety functions

Driver chips usually have various protection functions to ensure the safety and reliability of the device. For example, over-current protection, over-temperature protection, short-circuit protection, etc. can prevent the device from being damaged or malfunctioning.

The role of driver chip

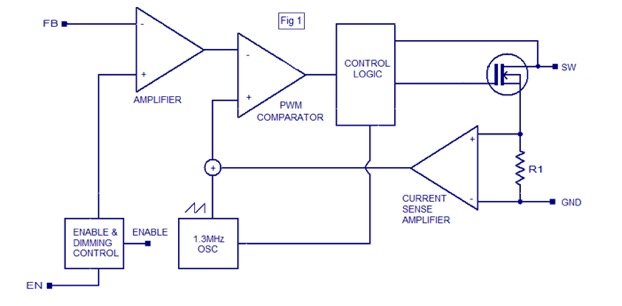

Principle of driver chip

The working principle of the driver chip is based on the technology and design of integrated circuits. It usually consists of multiple functional modules, including control logic, signal conversion, power management and output drive.

The driver chip first receives instructions and signals from the main controller or other input sources. The control logic module processes and decodes these signals and generates corresponding control signals according to predetermined algorithms and rules.

The signal conversion module converts the control signal into a signal suitable for the controlled device. It can amplify the amplitude of the signal through the amplifier circuit and remove noise and interference through the filter circuit to ensure the stability and accuracy of the output signal.

Principle of driver chip

To sum up

The driver chip is an integrated circuit chip specially designed to control and drive other electronic devices. It receives instructions and signals and provides the required power and signals so that the controlled device works as expected. The driver chip has the functions of controlling signal conversion and amplification, power supply and current drive, interface protocol support, and protection and safety functions. Its working principle is based on the technology and design of integrated circuits, and it controls and drives external devices through control logic, signal conversion, power management and output drive modules. Driver chips are widely used in various electronic devices, improving the reliability and stability of the system and promoting the development of technology and innovation in applications.



Topdiode Group is reliable gate drive IC chips and motor drive IC chips supplier and factory. Topdiode supplies fast delivery and stock offer for these motor gate drive IC chips and motor drive IC chips. Topdiode offer alternative IC chips to Infineon’s gate drive IC chips and motor drive IC chips. Topdiode can help customer cost down and shorten lead time.

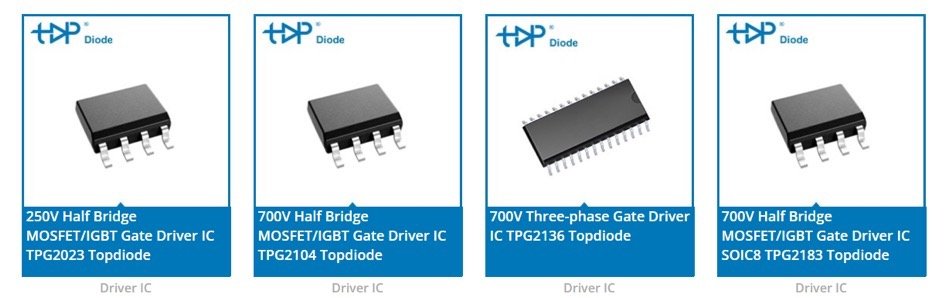

Topdiode offer gate drive IC chips and motor drive IC chips as follow: TPG2023, TPG2104,TPG2136, TPG2183, TPG2101, TPG2103, TPG2113 etc.

Topdiode can offer equivalence of Infineon’s gate drive IC chips and motor drive IC chips: IRS2104, IRS2136, IRS2183S, IRS2101, IRS2103, IRS2113 etc.
