Diodes are essential components in battery chargers, serving multiple roles such as rectification, protection against reverse polarity, preventing battery discharge, voltage regulation, and managing energy in switching chargers. Understanding how to use diodes effectively can improve charging efficiency and protect battery health.

What is a Diode and Its Role in Battery Charging

Diodes play several important roles in battery chargers:

1. Rectification: Diodes are used to convert alternating current (AC) from the power source into direct current (DC) suitable for charging batteries. This process is known as rectification. A bridge rectifier, which consists of four diodes, is commonly used to ensure that both halves of the AC waveform are utilized.
2. Protection Against Reverse Polarity: A diode can be placed in series with the battery to prevent reverse polarity. If the battery is connected incorrectly, the diode blocks current from flowing back into the charger, thereby protecting the charger from damage.
3. Preventing Battery Discharge: A diode can also be used in parallel with the battery (in a reverse-biased position) to prevent the battery from discharging back into the charger when the input power is removed. This is particularly important in chargers that are not designed to be connected continuously.
4. Voltage Regulation: In some chargers, diodes can help regulate the voltage applied to the battery by dropping excess voltage and ensuring that the charging voltage remains within safe limits for the battery.
5. Flyback Diode in Switching Chargers: In switch-mode chargers, diodes (often called flyback diodes) are used to manage the energy stored in inductors and transformers when the switch turns off, preventing voltage spikes that could damage the circuit.

As shown in the figure, diodes 1N4001 (D1) and 1N4001 (D2) form a full-wave rectifier. The rectified voltage appears across SCR1 and the battery to be charged. At low battery voltages, SCR2 is in cut-off state. SCR1 is triggered by the gate current flowing through resistor R1 and diode D3, and the battery charging starts.

As charging continues, the battery voltage rises to a level high enough to turn on the zener diode and trigger SCR2, which brings down the voltage to a level too low at the junction of R1-R2 and SCR1 cuts off. This occurs when the battery is fully charged and the open-circuit state of SCR1 cuts off the charging current. The regulator starts recharging the battery whenever the reference voltage Vr drops below the zener diode’s breakdown voltage and prevents overcharging when voltage Vr is equal to the breakdown voltage of zener diode ZD1.

Using a diode in a battery charger serves multiple purposes, such as preventing reverse current flow, voltage regulation, and protection. Here’s how you can use it effectively:

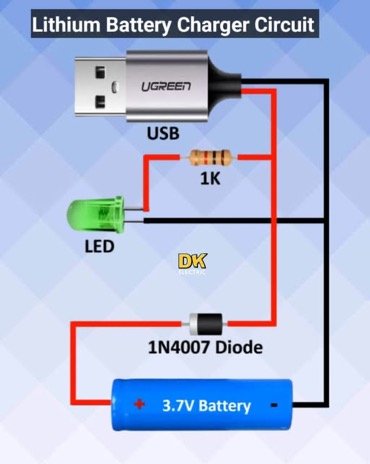

Preventing Reverse Current (Blocking Diode)

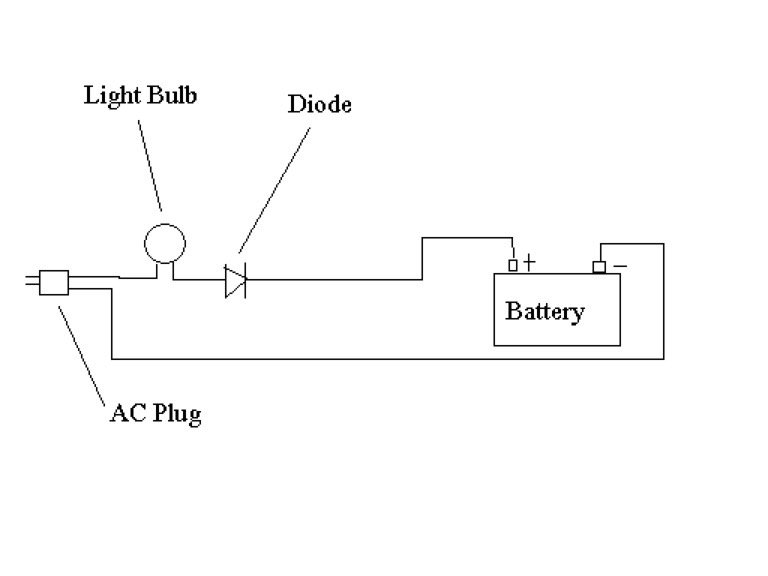

A diode is commonly placed in series with the power source to prevent the battery from discharging back into the charger when the power supply is off.

• Connection:
  • Place a Schottky diode (for lower voltage drop) in series with the positive terminal of the charger.
  • The anode connects to the charger’s positive output, and the cathode connects to the battery’s positive terminal.
• Recommended Diodes:

• • Schottky Diode (e.g., 1N5822, SS34) – Low voltage drop (0.3V–0.5V), ideal for efficiency.
  • Standard Rectifier Diode (e.g., 1N4007) – Higher voltage drop (0.7V), less efficient but commonly used.

Voltage Regulation

Diodes can also be used in Zener diode regulators to protect the battery from overvoltage.

• A Zener diode (e.g., 6.2V for a 6V battery) can be placed in parallel with the battery to clamp excessive voltage.

Full-Wave Rectification for AC Battery Chargers

If using an AC power supply, a bridge rectifier (four diodes) converts AC to DC before charging the battery.

• Use 1N5408 (3A) or MB6S Bridge Rectifier (600V, 0.5A) based on the current requirements.
