silicon controlled rectifier(SCR)

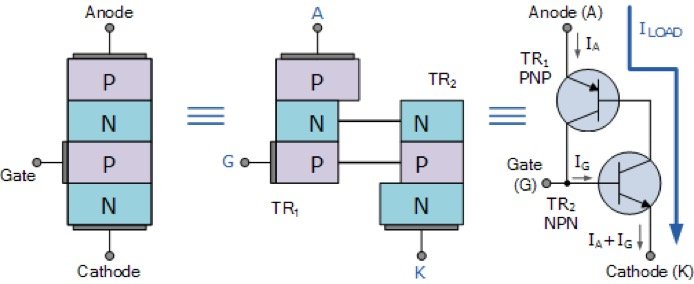

Thyristor, also known as silicon controlled rectifier (SCR), is a four-layer, three-terminal semiconductor device mainly used for AC/DC conversion, motor control and power regulation in the field of power electronics.

Advantages of silicon controlled rectifier

• High power handling capability: Triacs are capable of handling higher voltages and currents, making them suitable for high power applications.
• Fast switching characteristics: SCRs have fast switching speeds, which is very important for power control applications that require fast response.
• Easy to control: SCR can control large currents through small current signals, which makes it very flexible in control circuits.
• High reliability and long life: Since there are no mechanical parts, the thyristor has high reliability and long life.

• Temperature stability: SCRs can work stably in a wide temperature range and are suitable for various environmental conditions.
• Protection function: SCR has certain over-voltage and over-current protection capabilities and can play a protective role in the circuit.
• Compatibility: SCRs can be used with other types of power devices, such as MOSFETs and IGBTs, to meet different circuit needs.
• Economical: The cost of thyristor is relatively low and suitable for large-scale production and application.

In addition to the above introduction, there are also advantages such as contactless operation, noiseless operation, and easy parallel connection. These advantages make it widely used in the field of power electronics, especially in situations where high power, high efficiency and high reliability are required.

Among them, TO-247 package is a commonly used package for silicon controlled thyristors.

Topdiode offers a range of TO-247 packaged products, including thyristors with different voltage and current levels.

Topdiode produce alternative to replace SCR fm Vishay, Littelfuse, IXYS, WeEn etc .

It can be widely used in following end/products:

• Softstart AC motor control
• DC Motor control
• Power converter
• AC power control
• Lighting and temperature control
• Uninterruptible Power Supply (UPS)
• Solid State Relay (SSR)
• Battery charge.

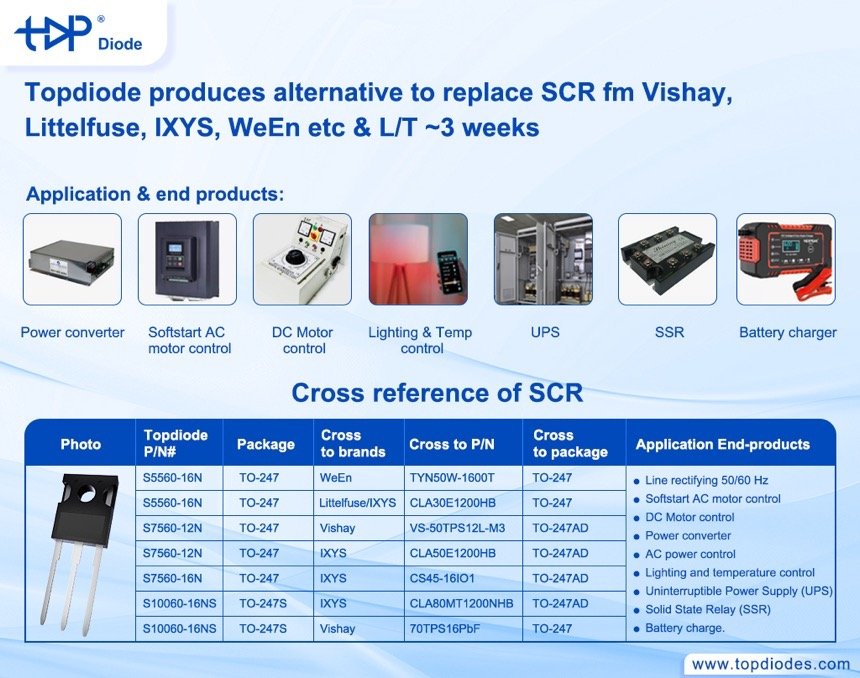

Cross reference of SCR from Topdiode

If you want to explore more Thyristor(SCR) ,

please visit our website:https://www.topdiodes.com

Or send inquiry to karin@topdiode.com
